drive.web speedy
The speedy boards are plug-in, high-speed drive bus interfaces for the Bardac E-Series AC vector drives and the PL-Series digital DC drives.
speedy-se
drive.web interface and processors for E-Series AC vector drives.

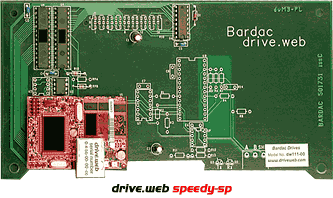

speedy-sp
drive.web interface and processors for PL-Series Digital DC drives.
Features & Options (please call for availability):
- Ethernet interface to drive.web technology products
- Ethernet interface to ModbusTCP/IP
- Internet accessibility for configuration, monitoring & control
- "Drag 'n drop" connections between parameters
- System libraries with standardized functions for:
- arithmetic
- logic
- PID, comparator, filter, latch, timer, profiler, counter
- drive coordinator for multi-section systems
- diameter calculator, taper tension, torque compensator for winders
- spindle orientation, cut to length
- electronic line shaft
- RS485 isolated port up to 250kbps. Up to 19.2kbps with ModbusRTU speedy-sp only)
- Dimensions:
- speedy-se: 4.3"w, 3.1"h, 0.8"d (110mm, 79mm, 20mm)
- speedy-sp: 7.8"w, 4.0"h, 1.5"d (198mm, 101mm, 38mm)
speedy485
speedy485 is a low cost drive.web controller with an easy interface to almost any drive via its ModbusRTU port. It includes Ethernet ModbusTCP/IP for improved drive networking performance and a basic function block library for drive coordination and process control. There are dedicated versions for Optidrive Sensorless Vector drives and Yaskawa F7 and V1000 drives.
speedy485 control schemes are configured from graphical function block libraries using the drive.web savvy system design tools (free with automated updates from driveweb.com). These control schemes can easily be connected to drives, PLCs, operator stations, etc., over Ethernet.
smarty specials are pre-configured units for specific applications such as open loop and closed loop winders, master/ slave drive sections and customized functions.
speedy485 Standard Features:
- Ethernet interface to drive.web technology products
- Ethernet interface to ModbusTCP/IP
- Internet accessibility for configuration, monitoring & control
- "Drag 'n drop" connections between parameters
- Basic system libraries with standardized functions for:
- arithmetic
- logic
- PI controller
 |
 |
Model Numbers:
| dw117 | Generic low cost drive.web controller for any drive with a ModbusRTU port |
| dw118 | Low cost drive.web controller with seamless graphical programming interface to Optidrive Plus drive |
| dw119 | Low cost drive.web controller with seamless graphical programming interface to Yaskawa F7 drive |
| dw120 | Low cost drive.web controller with seamless graphical programming interface to Yaskawa V1000 drive |
Options Include:
- Advanced process control function block library
- Winder control function block library
- Advanced math function block library
